High performance machines with reduced cost of ownership

• Manufacturer: Gloucester Engineering Co.Inc/ Davis-Standard
• Produces Flexible Thermoplastic Sheets
• The plant is in brand new condition, never used, currently packed in original packing as purchased, and currently stored in very good condition.
• It was purchased from the USA  in 2016;  but for some internal rearrangements, the project was cancelled. It is being sold as an asset liquidation for its owner.
• Capacity: Design - 12,000 TPA; Production - 10,800 TPA

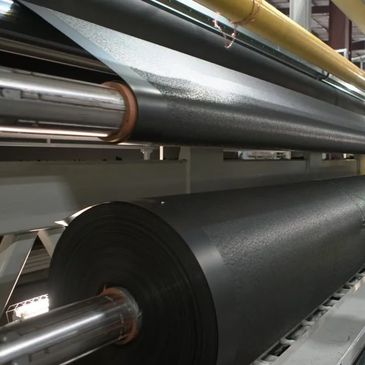

• Product: Smooth and textured geo-membrane sheets.

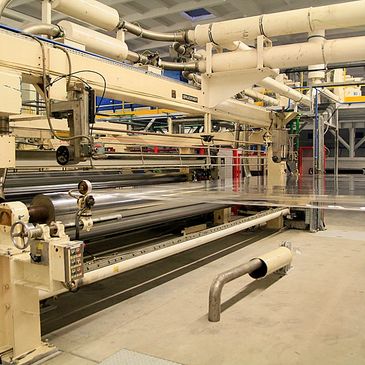

The available line for sale is a refurbished 6.3m Bruckner 3 Layer BOPP Line along with 6.5m Atlas Primary Slitter and Recycling Unit as a Combi-Deal.

Specifications

Start-up Year: 1998

Refurbishing done: 2006 - 2007

Film Types: Plain and Coextruded   Composition: 3 Layer, ABC

               A and C copolymer; B homopolymer

Thickness range: 15 - 50 microns

Net Film Width: 6300mm

Stretching Ratios:

MDO:  1:1 - 1:17                                             TDO:  1:8 - 1:10

Speed: 300m/min (upgraded)

Upgradation/Refurbishing Details

Upgradation period: 2006 ‐ 2007

Heating system for die bolts:

Change from relay PLC B&R to PSG SISTEMP

MDO modifications:

3 new gear boxes (MDO 1, MDO 2 Y MDO 3)    Change of coupling and cardan shafts    Change of preheat pulleys

Change of pulleys for speed variator

Change of belts

Change of drivers for DC motors MDO 1, MDO 2 and MDO 3.

TOD modifications:

Change of contactors of the 8 motors in preheat zones for frequency variators for better  temperature and heat efficiency control.

Change of TDO chain from FOK 4.4.2 to FOK 4.7, for a 300 m/min speed.

Change of the lubrication system and individual motor system for each side with AC motors  instead of the gear box, cardan shafts and DC motor system.

Pull Roll section:

Change of all pulleys

Change of spreaders

Manufacturer : Fongkee (South Korea)

Model No. :  TCF – 65/100/65-1800

Year of Manufacture : 2003

Die Size : 1800 MM (Make: Cloeren USA)

Max Line Speed : 150M/Minute

Film Size : 1400 MM Max (Online Decal System)

Ext – A Motor : 40 HP(Screwdia Dia – 65MM)

                          Output - 80KG/Hr

Ext – B Motor : 100 HP (Screw Dia – 100MM)

                          Output – 144KG/Hr

Ext – C Motor : 40HP (Screw Dia – 65MM)

                          Output – 80KG/Hr

Corona Unit : Make - Softal (10KW)

                      (Updated - 2020)

Scanner : NDC 6100TC (Gamma Bottle System)

Winding Width : 1500 MM

Winder Diameter : 720 MM Max

PLC : Simatics ET 200 SP

All Drive And Plc And Corona Unit Are Updated.  [Update Year : 2018]

Manufacturer : General Vacuum

Model : K4000-1250

Year : 2007

Working Width : 1250 mm

Speed : 600 Max M/min

Max diameter reel unwinder : 1000 mm

Max diameter reel rewinder : 1000 mm

Evaporation Boats : 14 : Size – 150x35x10 MM

PLC, Drives & Control : Siemens S7 with simoreg drives for the  machine and process control, via supervision PC. The evaporation boats  are controlled by a separate cabinet with advance energy. (All Fully Updated:  Year  2018)

Pumping Systems :

• 2 x diffusion pumps 17500 L/Sec
• 2 x rotary pumps 755m3/h
• 2 x roots pumps 4035m3/h
• 1 x boosters pumps 9720m3/h
• 1 x cryogenic panel PFC 1100-HC

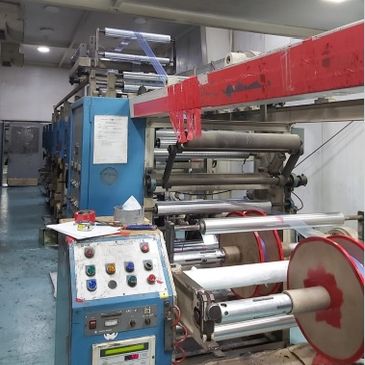

Manufacturer: LONG

NEW Model: LNB-807

Year: 1997-10

Number of colors: 7

Web width (mm): 1000

Print width (mm): 800

Min print repeat (mm): 400

Max print repeat (mm): 900

Unwinder type: Turret

Max reel diameter unwinder (mm): 600

Rewinder type: Turret automatic

Max reel diameter rewinder (mm): 600

Drying: Heater

Web guides: Tongu Denki

Inking system: Pneumatic inking pumps

Additional informations: Materials: PVC, PE-PP-PAPER

Mechanical speed: 120 Mt/min

All Dc motors’ with PLC Mitsubishi

Manufacturer: HSING WEI

Model: HW8-800X5

Year: 2004

Number of colors: 3

Web width (mm): 1000

Print width (mm): 800

Min print repeat (mm): 400

Max print repeat (mm): 600

Unwinder type: Turret

Max reel diameter unwinder (mm): 700

Rewinder type: Turret automatic

Max reel diameter rewinder (mm): 700

Drying: Heater

Web guides: PKE

Inking system: Pneumatic inking pumps

Additional informations: Materials: PVC, PE--PAPER

Mechanical speed: 120 Mt/min

All AC motors’ with PLC Falcon inverter YESKAWA – HMI Screen Delta

Rewind and Unwind – End to End

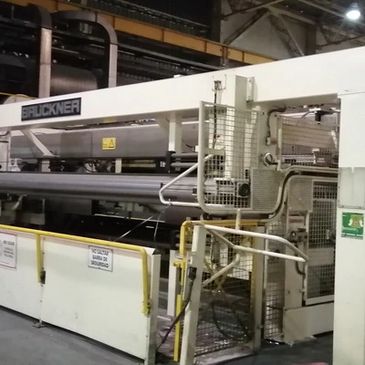

Manufacturer : Brückner

Model : BOPP

Year : 1993

Number of Layers : 5

Overhaul / Renovation : 2000 - 2004

Film Structure : ABCDE

Material : BOPP Thickness : 15 - 60 micron; Width of film after trim : 6.0 m

Output : 3000 kg/hr

Width : 6600 mm

Extruder 1 Description :  Main Extruder is a tandem of Ø250 and Ø175 mm extruders Max output: 2500 kg/hr; Manufacturer: Mitsubishi AC drives Main filter (13 candle filters) surface area: 6.2 m2

Extruder 2 Description :  2 co-extruders Ø120mm with max. output 380 kg/hr Filter: 1 candle filter with surface area 4000cm2; Manufacturer: Battenfeld AC drives.

Extruder 3 Description :  2 satellite extruders Ø90mm with max output 180 kg/hr Filter: disc filters with a changer; Manufacturer: Mitsubishi AC drives.

Head description :  5 layer Norson EDI die 810mm AUTOFLEX VI-R MULTIFLOW V

Thickness control system :  Thickness Gauge: Honeywell Measurex System with a new workstation and software (2013)

Chill roll unit :  Chill roll 2400mm diam. Air knife . Film and chill roll drying system Water bath

MDO description :  Brückner Pre-heating via heat box heated by 2 Eclipse (800kW each) natural gas burners 6 stretching rolls (oil heated) 4 annealing rolls (oil heated) 4 nip rolll Tension control at inlet and outlet AC drives

TDO description :  Manufacturer: Brückner Chain and chain track model: FOK 4.7 Heating system: Eclipse (200kW) natural gas burner for every zone (13 zones), no oil Edge guide system at inlet.

Corona treatment :  Corona treatment station (Sherman)

Rewinder width :  Kampf non-stop winder Working width: 7000 mm 40 steel cores

Slitter :  Slitter Rewinder: Atlas 6600 mm

Additional information :  Material feeding equipment Main extruder: mixing hopper, raw material feeder, re-granulate feeder, 2 additives feeders Co-extruder: raw material feeder + 4 component gravimetric system Satellite extruder: raw material feeder Silos: 10 silos 30 tons each Trane Chiller Herbold schredder

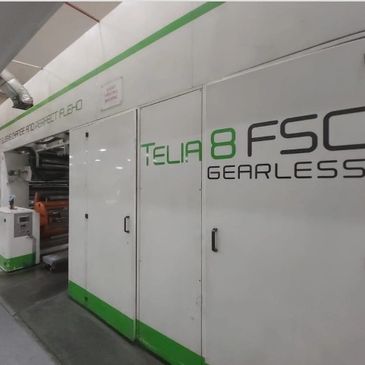

Manufacturer: BIELLONI

Model: TELIA-8 F.S.C. GEARLESS

Year: 2012

Number of colors: 8

Gearless: Yes

Fast sleeve change: Yes

4 motor per deck CNC position system: Yes

Computer supervision: Yes

Web width (mm): 1500

Print width (mm): 1300

Min print repeat (mm): 360

Max print repeat (mm): 900

Unwinder type: Turret Automatic

Max reel diameter unwinder (mm): 900

Rewinder type: Turret automatic

Max reel diameter rewinder (mm): 900

Drying: Heater Videocamera: Yes,

Web guides: SBST in double and out

Vyscosity control: No

Inking system: Pneumatic inking pumps

Anilox: Yes, 5x100L/cm-vol 14,5; 1x80L/cm-vol 15,6; 3x160L/cm-vol 9,3; 1x160L/cm-vol 12; 1x160L/cm-vol 8 ; 1x160L/cm-vol 6,5; 1x120L/cm-vol 6,5; 2x220L/cm-vol 5,5; 1x200L/cm-vol 6,5;  2x260L/cm-vol 5,5; 2x180L/cm-vol 5x5; 2x280L/cm-vol 5,5; 8x340L/cm-vol 5,5; 2x240L/cm-vol 5x5;

Print cylinders: Yes, 360x8, 380x8, 390x8, 400x8, 420x8, 440x8, 460x6, 470x8, 490x8, 530x8,  540x8, 570x8, 580x8, 590x8, 610x8, 620x8, 670x8, 700x8, 730x8, 790x8, 820x8, 860x8,  890x8,450x8, 480x8, 500x8, 510x8, 520x8, 550x8, 560x8, 600x8, 650x8, 660x8, 680x8, 760x8,

Mandrels: 450x9, 600x9, 750x8,

Additional informations: Materials: PVC, PET-BOPP, PE-PP-PAPER

Mechanical speed: 400 Mt/min

ACCESSORIES: Chiller, Plate Mounting Machine and Mandrel/Sleeves Stand
